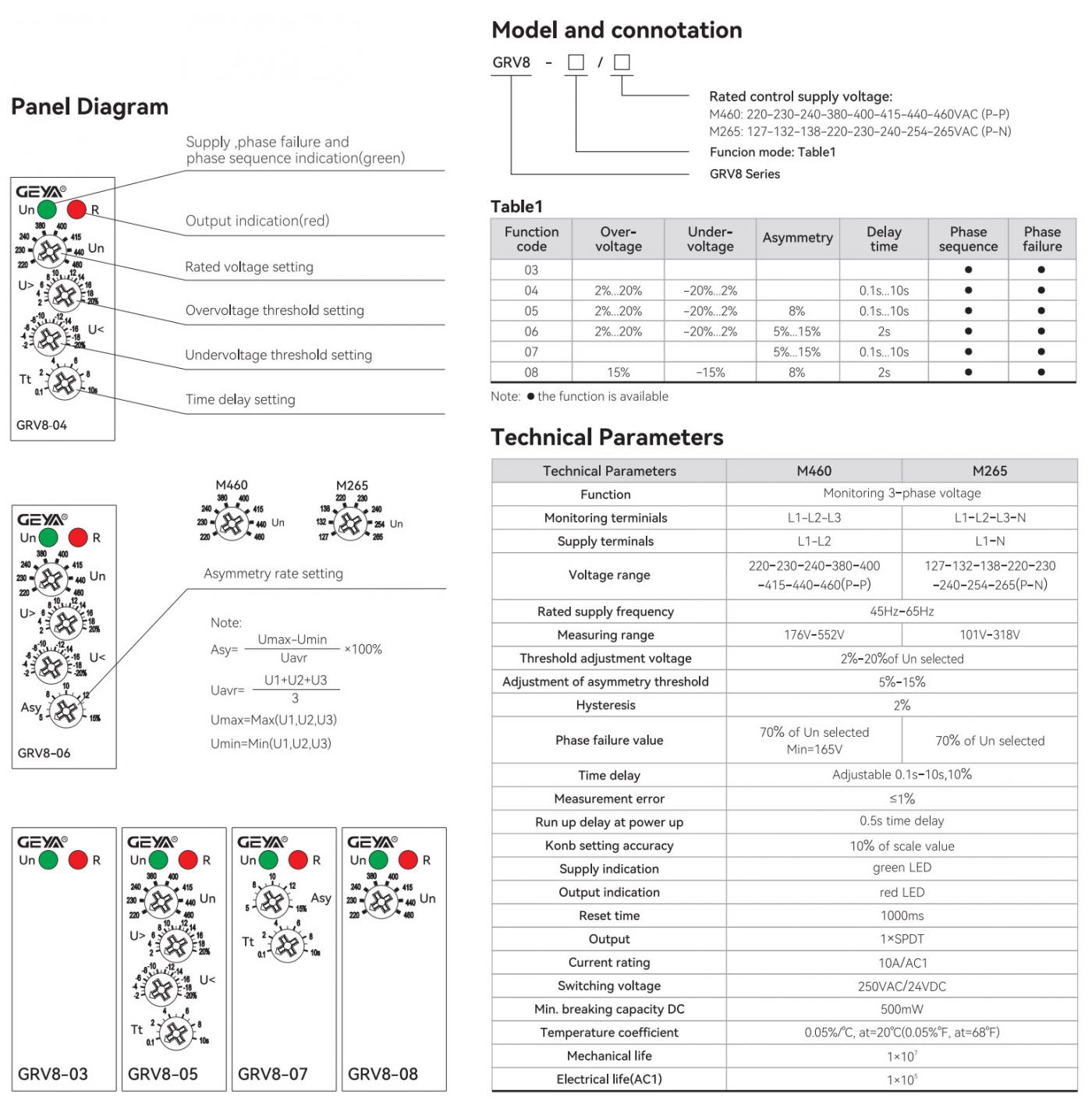

3-Phase voltage relay GRV8-03...08 Instruction Manual
Applications
-Control for connection of moving equipment(site equipment, agricultural equipent, refrigerated trucks).
-Control for protection of persons and equipment against the consequences of reverse running.
-Normal/emergency power supply switching.
-Protection against the risk of a driving load(phase failure)
-Control for connection of moving equipment(site equipment, agricultural equipent, refrigerated trucks).
-Control for protection of persons and equipment against the consequences of reverse running.
-Normal/emergency power supply switching.
-Protection against the risk of a driving load(phase failure)
Function Features
-Controls its own supply voltage(True RMS measurement).
-Set 8-level rated operating voltage through knob.
-Measuring frequency range:45Hz-65Hz.
-Voltage measurement accuracy<1%.
-Relay status is indicated by LED.
-1-MODULE,DIN rail mounting.
-Controls its own supply voltage(True RMS measurement).
-Set 8-level rated operating voltage through knob.
-Measuring frequency range:45Hz-65Hz.
-Voltage measurement accuracy<1%.
-Relay status is indicated by LED.
-1-MODULE,DIN rail mounting.
