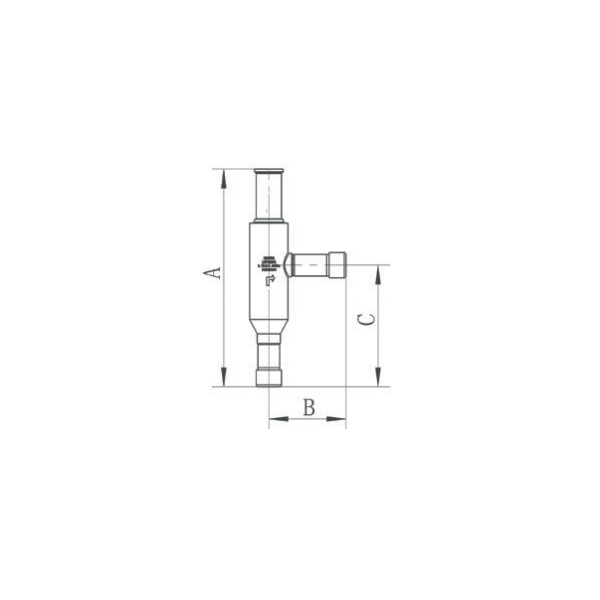

LTF condensing pressure regulating valve

LTF condensing pressure regulating valve The LTF condensing pressure regulating valve is used in refrigeration units with air-cooled condensers. It is installed after the condenser. When the ambient temperature is too low, it controls the outlet pressure of the condenser to prevent the unit from being unable to operate normally due to its low temperature. Generally, it is used with a differential pressure valve together.

Refrigerant: HCFC, HFC, as R22, R134a R404A R407C R410A R32

Temperature of Refrigerant: -30

Working Temperature: -30 ~ +60ºC

Humidity: lower than 100%
